Spiral Silo

Share

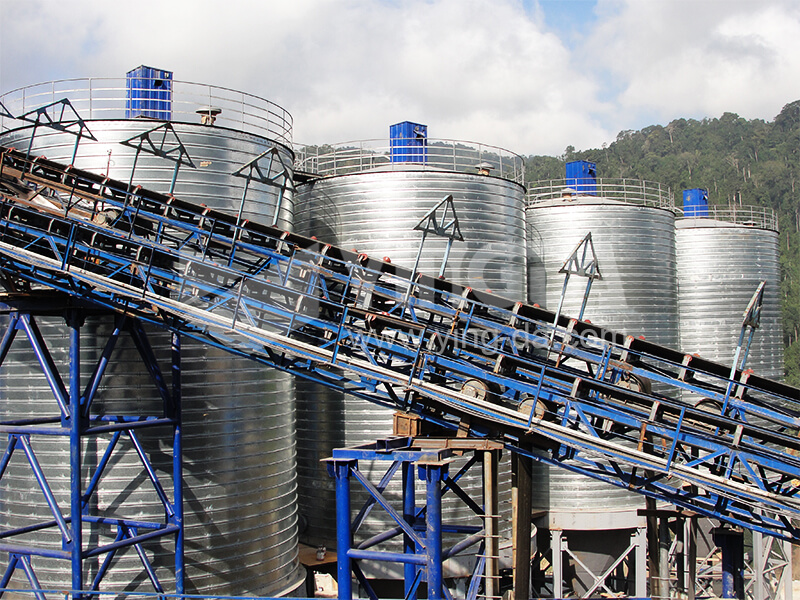

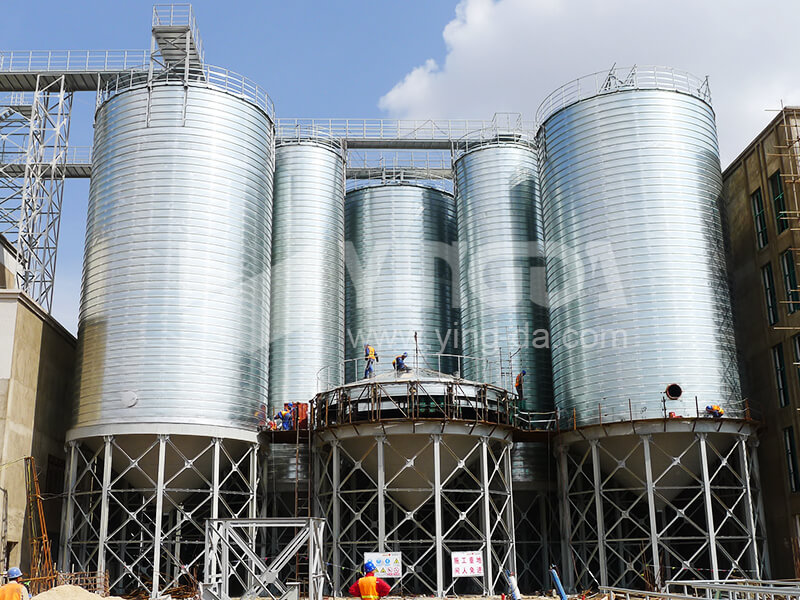

Spiral silo is made of high quality galvanizing plate; all plate are bolted together by common or high strengthen bolts. The thickness of silo wall is designed according to the strength theory, which makes the whole wall can afford even swelling tension. At the same time, the interior vertical stiffeners can afford the vertical friction. The handle equipment can make it more convenient to maintenance and unloading, such as silo doors, interior and exterior ladder and protecting net.


Introduction

1.   Used to store cement , grain ,coal ash ,slag powder etc..

2.   The capacity can be up to 10,000 tons.

3.   The diameter of spiral silo ranges from 5.5m to 27.5m

4.   High strength: the spiral silo wall is reinforced by vertical stiffener and connected by screw. It has great strength and good resistance to wind, earthquake and snow.

5.   Good sealing and Small area occupancy

6.   Long working life: 25-30 years

7.   Less investment: 20-30% less costs than steel bar concrete silos.


Parameter

      Volume (m3)

Height

(m)

Diameter(m)

4-8

9-15

16

18

20

22

25

6-10

75-502

381-1538






11-15

138-753

699-2649

2210

2797-3815

4082-4710

4939-5699

6868-7359

16-18

200-904

1017-3179

3215-3617

4069-4578

5024-5652

6079-6838

7849-8830

19-21

238-1055

1208-3709

3818-4220

4832-6700

5966-6594

7218-7978

9321-10300

22-25

251-1256

1398-4415

4421-5024

5595-6358

6908-7850

8358-9498
