Description:

The Belt bucket elevator is designed for the vertical transport of bulk materials with high throughput rates. It allows up to 1,000 m3 per hour of product to be elevated as high as 48 meters. Materials suitable for conveying include gravel, sand, chemical fertilizer, compound feeds, pellets as well as oilseeds.

Wokring princeple:

All buckets are tracked by belt, so the speed can be up to 1.8m/s, And capacity can be up to 1000m3/hr by TGD.

The hopper picks up the material from the underlying storage, and as the conveyor belt is lifted to the top, it rolls over the top wheel and then flips down. The bucket elevator pours the material into the receiving tank.

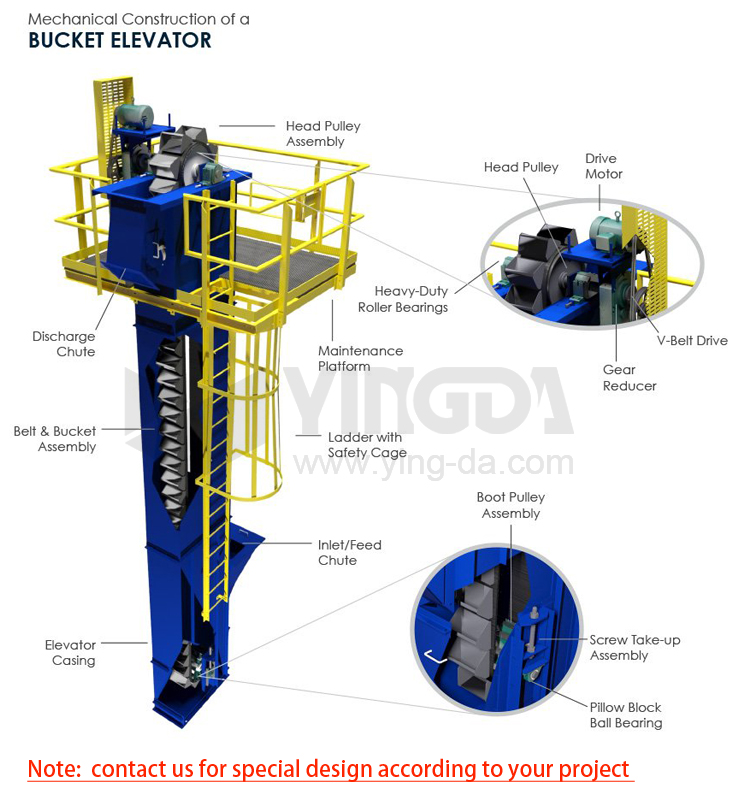

The drive belt of the belt bucket elevator with belt drive is generally equipped with rubber belt, which is mounted on the lower or upper drive roller and the upper and lower redirection rollers. Belt bucket elevator: suitable for lifting from low place to high place. The supply material is automatically transported upwards and continuously after the material is put into the hopper through the vibrating table.

Application:

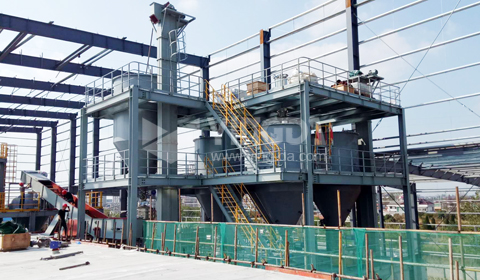

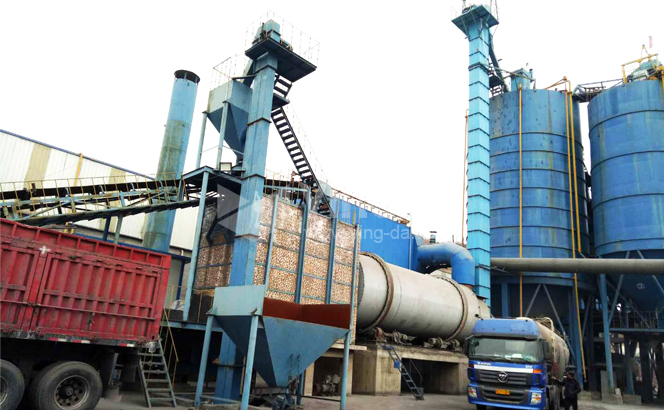

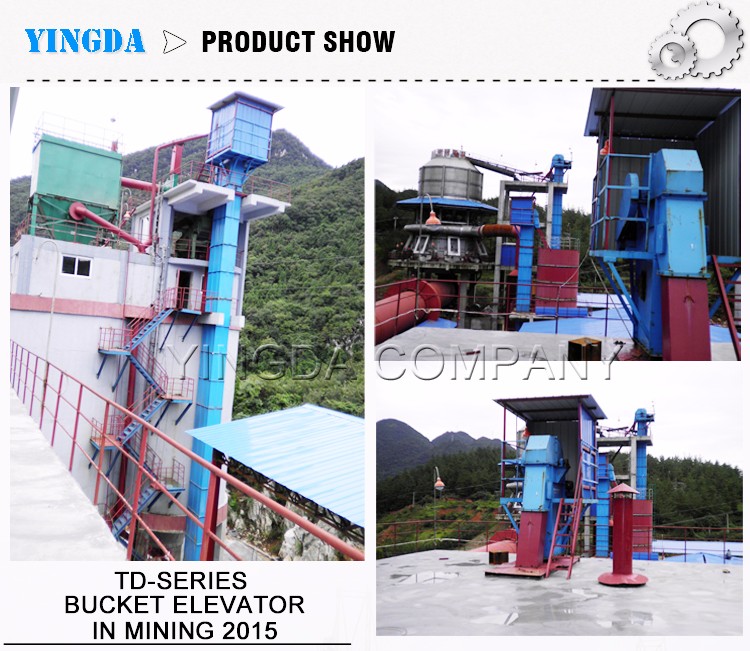

This high-capacity elevator is preferably applied in port terminals, inland silos and processing plants, cement industry, chemical industry, power plant, grain storage and other industry etc.

For conveying cement, cement clinker, crushed lime, sand, compound fertilizer, coal, grain and other bulk material etc. Our company manufacture various type bucket elevator to meet your different demands.
