Belt Scale

Share

Belt scale named belt weighing conveyor is used for weighing food, medical, chemical and mining and cement plant etc.

The belt scale is with high precision weighing, easy operation, fully automatic and so on, it is not only can be control by itself, but also can be connected by remote control.

The Belt scale is equipping with variable frequency motor and frequency regulator, the speed of belt will be adjusted automatically according to the actual capacity that you set up.


Introduction

1. High precision weighing, the measurement precision: less than ±0.5%.

2. Big weighing range: 0-500t/h (Capacity).

3. The conveyor belt weigh is equipping with sidewall rubber belt, in order to avoid the material to spillage.

4. Local control and remote control (optional).

5. Fully sealed (optional).

6. Easy operation and maintenance

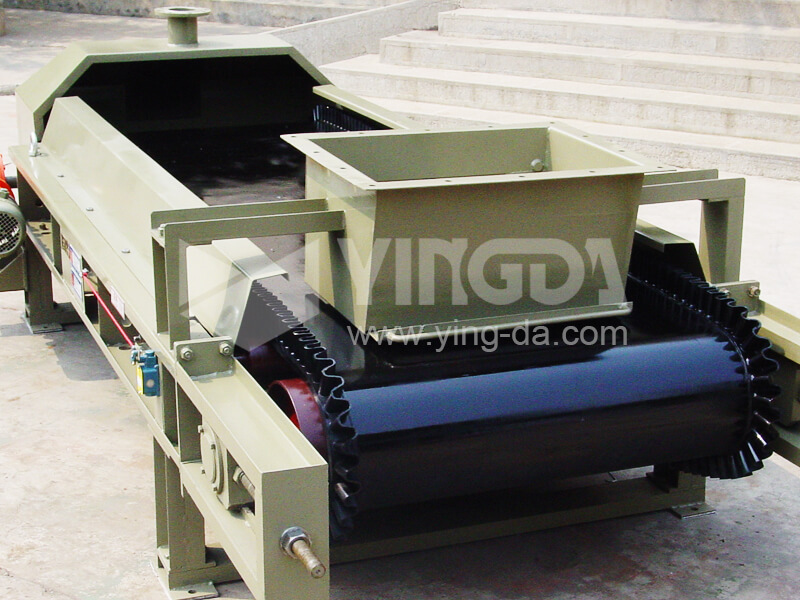

belt weighing feeder.jpg

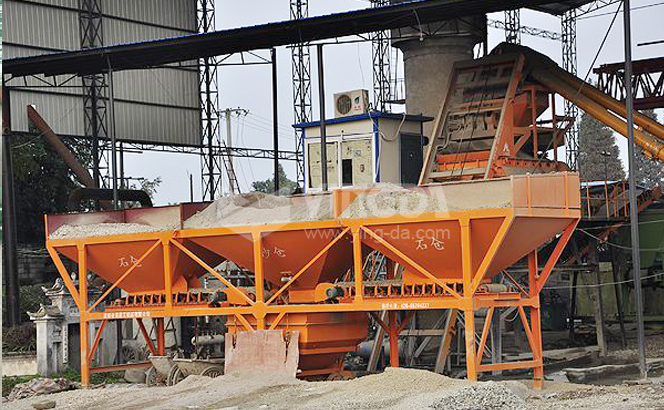

belt weighing feeder case.jpg

Parameter

Model No.

Belt width
  (mm)

Length

(m)

Accuracy
  (%)

Capacity

(t/h)

Allowed angle

Sensor

(unit)

05

500

1.5-4

±0.5

15

≤6°

2-4

06

650

1.5-4

±0.5

30

≤6°

2-4

08

800

1.5-4

±0.5

80

 ≤6°°

2-4

10

1000

1.5-4

±0.5

150

≤6°

2-4

12

1200

1.5-4

±0.5

220

≤6°

2-4

14

1400

1.5-4

±0.5

300

≤6°

2-4

16

1600

1.5-4

±0.5

500

≤6°

2-4

18

1800

1.5-4

±0.5

800

≤6°

2-4

20

2000

1.5-4

±0.5

1000

≤6°

2-4
