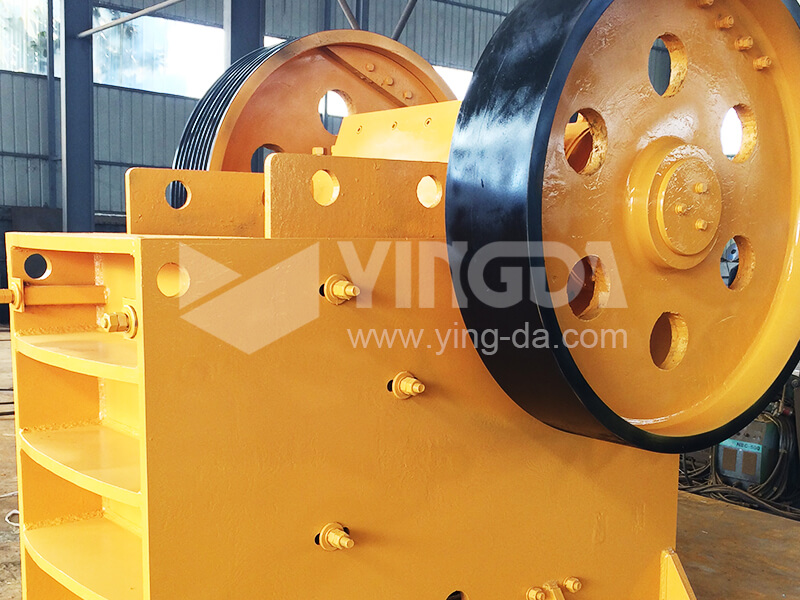

Jaw Crusher

Jaw crusher for stone is widely used for breaking various kinds of ores and rocks which the compressive strength is not higher than 320 Mpa and the particle size can not be bigger than the parameters in the chart .

Get Price Chat Now Send E-mail

Introduction
Parameter
Video
Related Products
Inquiry Now

Introduction

1. Model for the latest design, wide range of applications, compact structure, long service life, and high work efficiency.

2. Be easy replacement of wear and spare parts.

3. High capacity, less cost and easy to install.

4. First-class technology, reliable pre-sale customer service quality. and meet European CE certification standards.

Parameter

Model	Max. Feeding Size (mm)	Discharge Size (mm)	Capacity (t/h)	Motor Power (kw)	Overall Dimensions (mm)	Weight (t)
PE150×250	125	10-40	1-3	5.5	896×745×935	0.8
PE250×400	200	20-60	5-20	15	1150×1275×1240	2.8
PE400×600	350	40-100	15-60	30	1700×1732×1653	6.5
PE500×750	425	50-100	50-100	55	2035×1921×2000	10.3
PE600×900	480	65-160	60-130	75	2290×2206×2370	16.5
PE750×1060	630	80-140	80-180	110	2620×2302×3110	29
PE900×1200	750	95-165	140-260	110	3789×2826×3025	54.5
PE1000×1200	850	195-265	315-550	110	3335×3182×3025	57
PE1200×1500	1020	160-320	400-800	160	4200×3300×3500	101
