Linear Vibrating Screen

Share

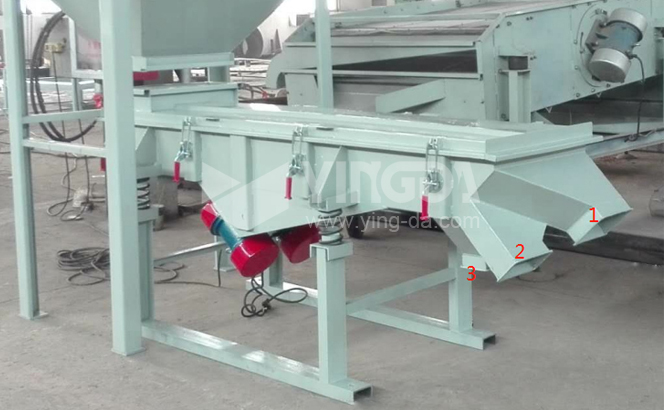

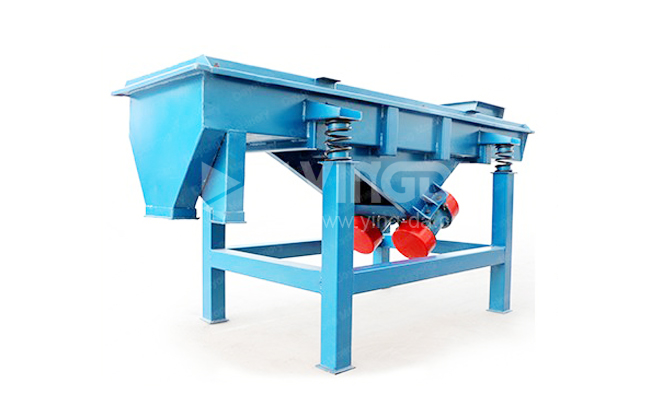

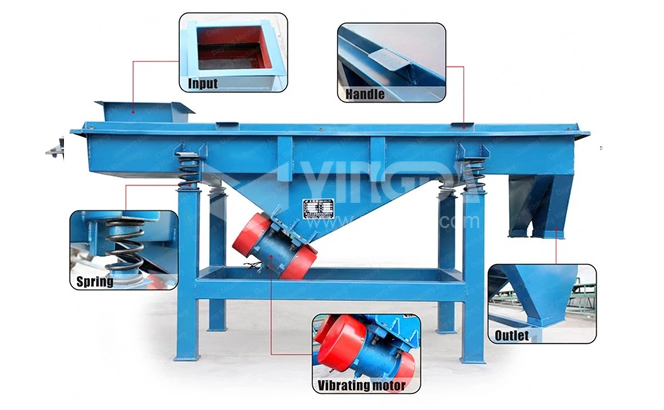

ZS type linear vibrating screen use excellent vibrant motor as power source, so that the materials can be thrown up on the sieve and forward to make a straight movement. It can be equipped with single or multi-screen to achieve the grading, removing impurity, removing dust, testing, washing selecting, dehydration etc.


Introduction

1. High sieving efficiency, high utilization ratio of screen, with bouncing balls set under the screen which eliminates mesh blockage, increasing precision of sieving.

2. Continuous working.

3. Fully enclosed structure avoids dust overflow, reaching the request of sanitation.

4. Rubber springs may be used on customers’ requests, which would considerably reduce running noise, improving labors’ working environment.

5. Simple and rational tensioning mode of screen, easy to replace.

6. The screen frame may be replaced as per different mesh numbers, saving running cost.


Parameter

Model

Screen Specification (mm)

Layers



Mesh Size

(mm)



Particle Size

(mm)



Vibrating Frequency (r/min)



Double Amplitude (mm)



Power (KW)



Vibrating Direction   Angle (°)

ZS525

500×2500

1--6

0.074-10

0.06-15

960, 1450

4--8

2×0.4, 2×0.75

45-60

ZS1020

1000×2000

1--6

0.074-10

0.07-20

960

4--8

2×0.75, 2×1.5

45-60

ZS1025

1000×2500

1--6

0.074-10

0.07-15

960,1450

5--8

2×0.4, 2×0.75

45-60

ZS830

800×3000

1--6

0.074-10

0.1-20

960

6--8

2×0.75, 2×1.5

45-60

ZS1030

1000×3000

1--6

0.074-10

0.1-20

960

6--8

2×0.75, 2×1.5

45-60

ZS1224

1200×2400

1--3

0.074-10

0.1-23

960

6--8

2×0.75, 2×1.5

45-60

ZS1230

1200×3000

1--3

0.074-10

0.1-23

960

6--8

2×1.5

45-60
